Nonyx

1 minute read
Walkthroughs
, , , ,

Lab URL: https://blueteamlabs.online/home/investigation/nonyx-63b4769449

Question 1

Which process most likely contains injected code, providing its name, PID, and memory address? (Format: Name, PID, Address)

python vol.py -f ../BlackEnergy.vnem malfind

Nonyx

Answer: svchost.exe, 856, 0xc30000

Question 2

What dump file in the malfind output directory corresponds to the memory address identified for code injection? (Format: Output File Name)

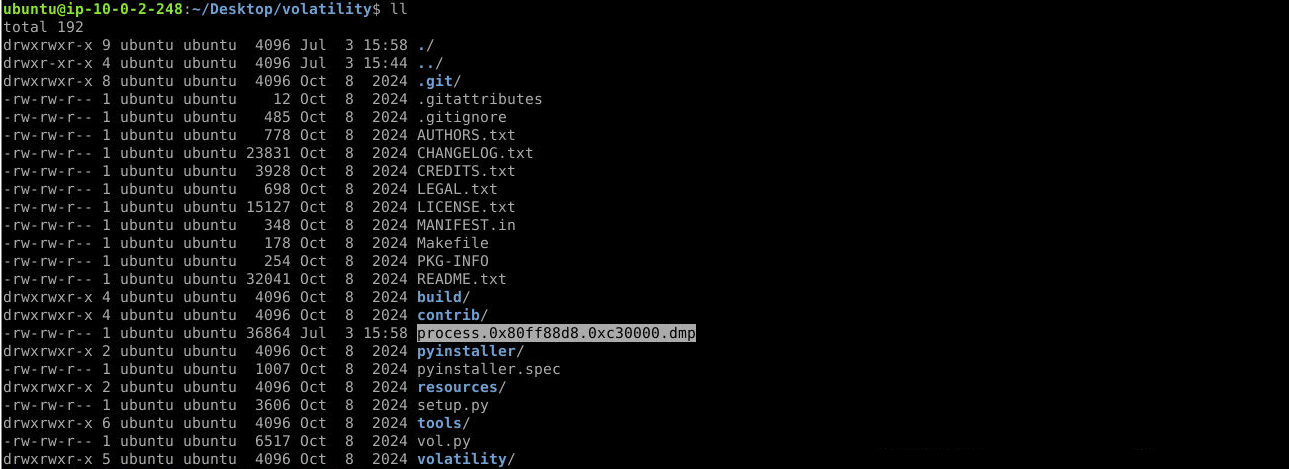

python vol.py -f ../BlackEnergy.vnem --profile=WinXPSP2x86 malfind --dump . --pid 856

Nonyx

Answer: process.0x80ff88d8.0xc30000.dmp

Question 3

Which full filename path is referenced in the strings output of the memory section identified by malfind as containing a portable executable (PE32/MZ header)? (Format: Filename Path)

strings -n 5 process.0x80ff88d8.0xc30000.dmp

Nonyx

Answer: C:\WINDOWS\system32\drivers\str.sys

Question 4

How many functions were hooked and by which module after running the ssdt plugin and filtering out legitimate SSDT entries using egrep -v ‘(ntoskrnl|win32k)’? (Format: XX, Module)

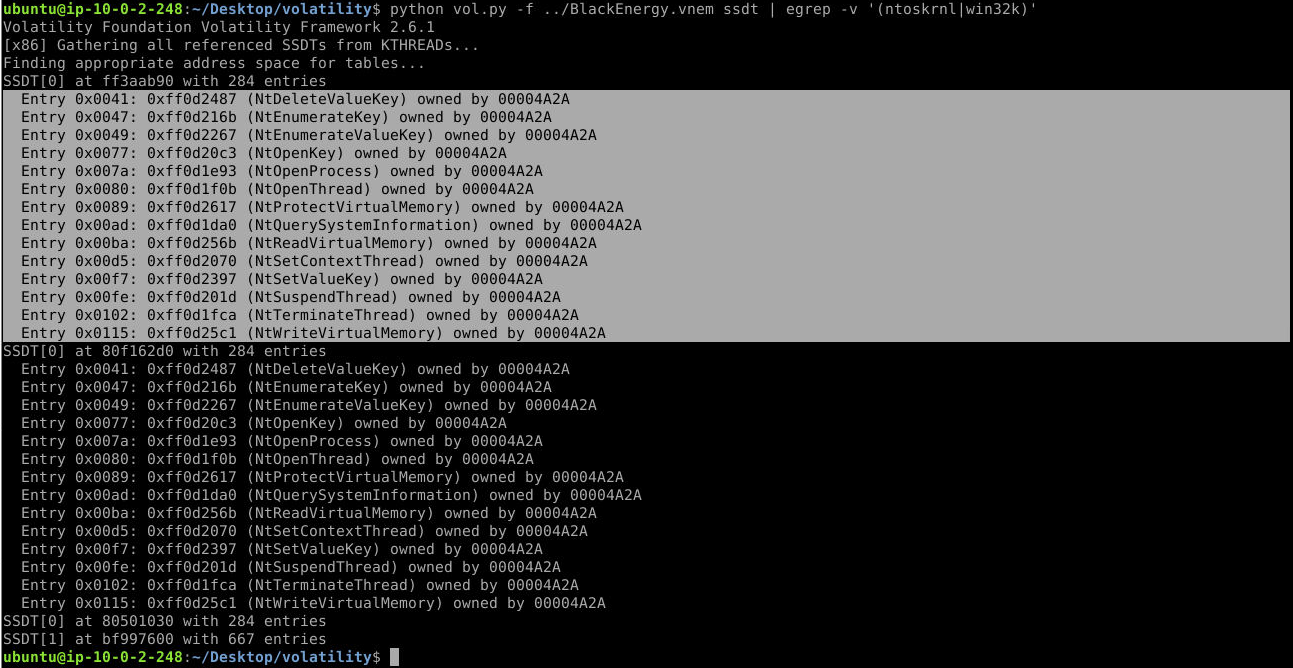

python vol.py -f ../BlackEnergy.vnem ssdt | egrep -v '(ntoskrnl|win32k)'

Nonyx

Answer: 14, 00004A2A

Question 5

Using the modules (or modscan) plugin to identify the hooking driver from the ssdt output, what is the base address for the module found in Q4? (Format: Base Address)

python vol.py -f ../BlackEnergy.vnem modscan |grep 00004A2A

Nonyx

Answer: 0xff0d1000

Question 6

What is the hash for the malicious driver from the virtual memory image? (Format: SHA256)

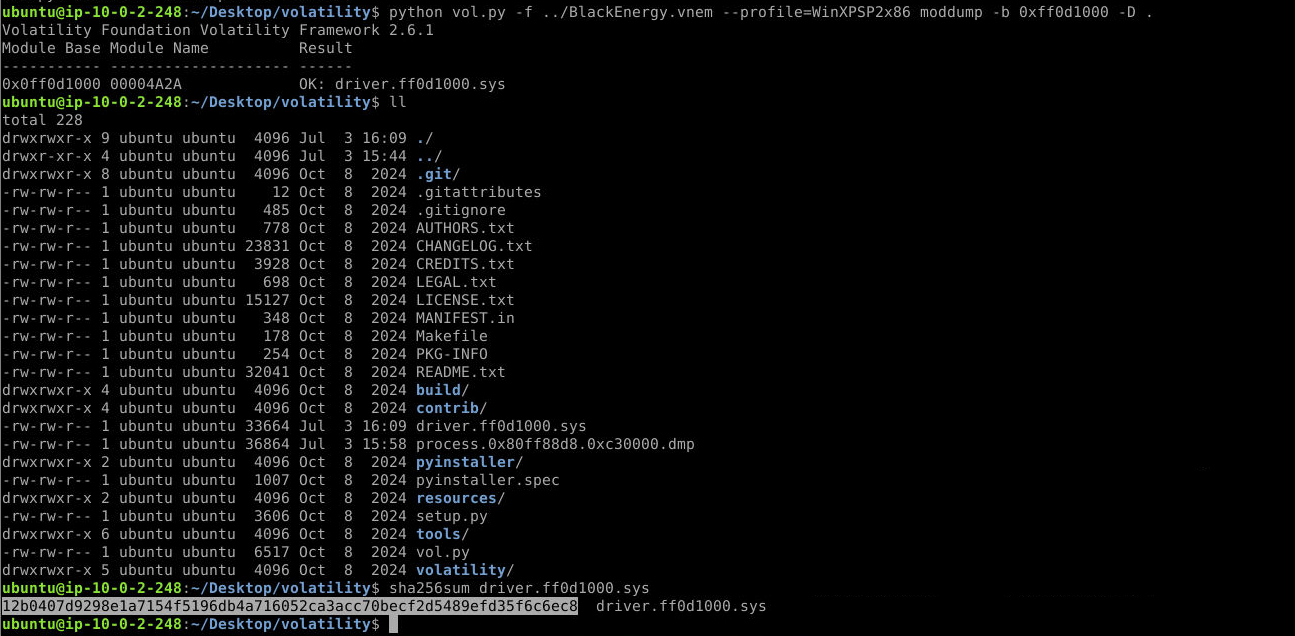

python vol.py -f ../BlackEnergy.vnem --profile=WinXPSP2x86 moddump -b 0xff0d1000 -D .

sha256sum driver.ff0d1000.sys

Nonyx

Answer: 12b0407d9298e1a7154f5196db4a716052ca3acc70becf2d5489efd35f6c6ec8

Thank you for taking the time to read this write-up! I hope you found it insightful and helpful.

Keep learning and stay sharp. 👊

Keep up the good work!
