OSPF Authentication

Author: Soner Sahin

2024-03-31

1 minute read

OSPF Authentication, OSPF network trafiğinin güvenliğini artırmak amacıyla kullanılır. 3 Çeşit doğrulama yöntemi vardır;

1- Plain Text Authentication,

2- MD5 Authentication,

3- SHA-HMAC Authentication (IOS 15.4 ve sonrası versiyonlar için)

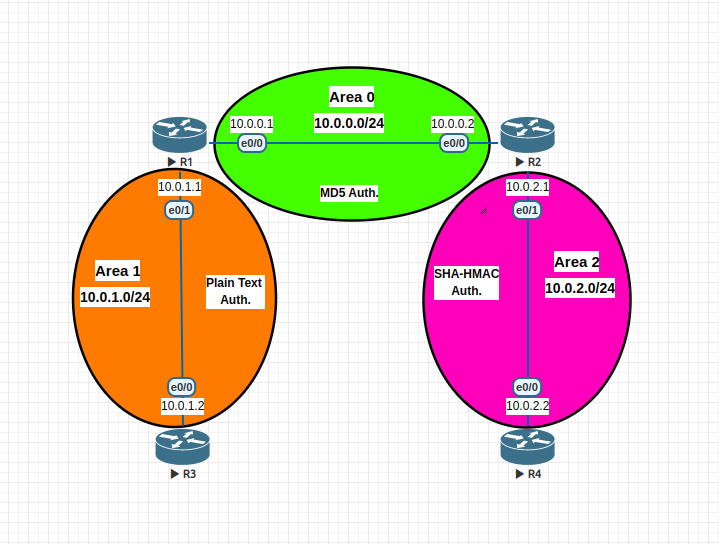

Aşağıdaki topolojiyi uygulayacağız.

ospf

Bu topolojide 3 Authentication metodunu da uygulayacağız.

R1 ve R3 arasında Plain Text Authentication (Area 1),

R1 ve R2 arasında MD5 Authentication (Area 0),

R2 ve R4 arasında SHA-HMAC Authentication yapacağız. (Area 2)

1- Interfacelere IP vererek başlayalım:

R1:

R1#configure terminal
R1(config)#interface e0/0
R1(config-if)#ip addr 10.0.0.1 255.255.255.0
R1(config-if)#no sh
R1(config-if)#interface e0/1
R1(config-if)#ip addr 10.0.1.1 255.255.255.0
R1(config-if)#no sh
R1(config-if)#exit

R2:

R2#configure terminal
R2(config)#interface e0/0
R2(config-if)#ip addr 10.0.0.2 255.255.255.0
R2(config-if)#no sh
R2(config-if)#interface e0/1
R2(config-if)#ip addr 10.0.2.1 255.255.255.0
R2(config-if)#no sh
R2(config-if)#exit

R3:

R3#configure terminal
R3(config)#interface e0/0
R3(config-if)#ip addr 10.0.1.2 255.255.255.0
R3(config-if)#no sh
R3(config-if)#exit

R4:

R4#configure terminal
R4(config)#interface e0/0
R4(config-if)#ip addr 10.0.2.2 255.255.255.0
R4(config-if)#no sh
R4(config-if)#exit

2- OSPF Yapılandırması Yapalım:

R1:

R1(config)#router ospf 1
R1(config-router)#network 10.0.0.0 0.0.0.255 area 0
R1(config-router)#network 10.0.1.0 0.0.0.255 area 1
R1(config-router)#exit

R2:

R2(config)#router ospf 1
R2(config-router)#network 10.0.0.0 0.0.0.255 area 0
R2(config-router)#network 10.0.2.0 0.0.0.255 area 2
R2(config-router)#exit

R3:

R3(config)#router ospf 1
R3(config-router)#network 10.0.1.0 0.0.0.255 area 1
R3(config-router)#exit

R4:

R4(config)#router ospf 1
R4(config-router)#network 10.0.2.0 0.0.0.255 area 2
R4(config-router)#exit

3- Authentication Yapılandırması Yapalım:

R1 ve R3 arasında yani Area 1’de Plain Text Authentication yapalım;

R1:

R1(config)#interface e0/1
R1(config-if)#ip ospf authentication
R1(config-if)#ip ospf authentication-key BESIKTAS
R1(config-if)#exit

R3:

R3(config)#interface e0/0
R3(config-if)#ip ospf authenticatiion
R3(config-if)#ip ospf authentication-key BESIKTAS
R3(config-if)#exit

R1 ve R2 arasında yani Area 0’ı MD5 Authentication yapalım;

R1:

R1(config)#interface e0/0
R1(config-if)#ip ospf message-digest-key 1 md5 feyyaz
R1(config-if)#ip ospf authentication message-digest

R2:

R2(config)#interface e0/0
R2(config-if)#ip ospf message-digest-key 1 md5 feyyaz
R2(config-if)#ip ospf authentication message-digest
R2(config-if)#exit

R2 ve R4 arasında yani Area 2 SHA-HMAC Authentication yapalım;

R2:

R2(config)#key chain R2
R2(config-keychain)#key 1
R2(config-keychain-key)#cryptographic-algorithm hmac-sha-512
R2(config-keychain-key)#key-string METIN
R2(config-keychain-key)#exit
R2(config-keychain)#exit
R2(config)#interface e0/1
R2(config-if)#ip ospf authentication key-chain R2

R4:

R4(config)#key chain R4
R4(config-keychain)#key 1
R4(config-keychain-key)#cryptographic-algorithm hmac-sha-512
R4(config-keychain-key)#key-string METIN
R4(config-keychain-key)#exit
R4(config-keychain)#exit
R4(config)#interface e0/0
R4(config-if)#ip ospf authentication key-chain R4
