IPv4 IPv6 Tünelleme

2 minute read
Network
,

Bu yöntem, IPv4’den IPv6’ya geçiş yöntemlerinden biri olan tünelleme tekniğidir. Bu yöntemde, IPv6 networkleri IPv4 üzerinden tünellenerek birbirleriyle haberleşirler. IPv4-IPv6 geçiş aşamalarında kullanılabilecek bu yöntemin yanı sıra Dual Stack, Translation yöntemleri de vardır.

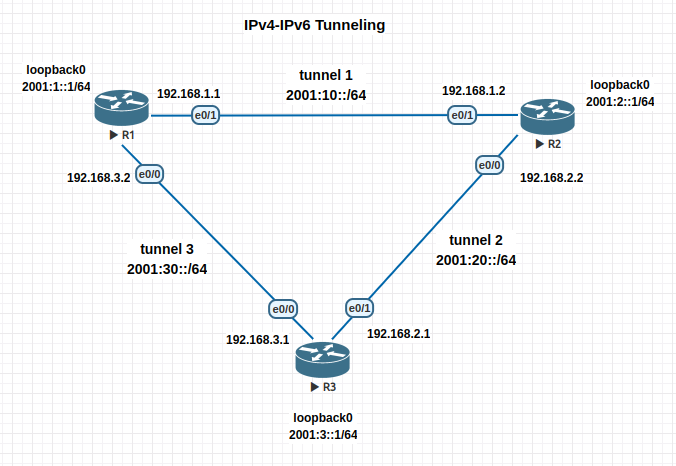

IPv4-IPv6 Tünelleme tekniği için aşağıdaki topolojiyi uygulayacağım.

ipv6

Yapılacaklar:

  1. Interfacelere IP ver.
  2. Sırasıyla tunnel oluştur.
  3. Statik route yazarak networkleri haberleştir.
  4. Test

1. Interfacelere IP ver. R1:

R1#configure terminal
R1(config)#int e0/0
R1(config-if)#ip addr 192.168.3.2 255.255.255.0
R1(config-if)#no sh
R1(config-if)#int e0/1
R1(config-if)#ip addr 192.168.1.1 255.255.255.0
R1(config-if)#no sh
R1(config-if)#int loopback 0
R1(config-if)#ipv6 addr 2001:1::1/64
R1(config-if)#no sh
R1(config-if)#exit

R2:

R2#configure terminal
R2(config)#int e0/0
R2(config-if)#ip addr 192.168.2.2 255.255.255.0
R2(config-if)#no sh
R2(config-if)#int e0/1
R2(config-if)#ip addr 192.168.1.2 255.255.255.0
R2(config-if)#no sh
R2(config-if)#int loopback 0
R2(config-if)#ipv6 addr 2001:2::1/64
R2(config-if)#no sh
R2(config-if)#exit

R3:

R3#configure terminal
R3(config)#int e0/0
R3(config-if)#ip addr 192.168.3.1 255.255.255.0
R3(config-if)#no sh
R3(config-if)#int e0/1
R3(config-if)#ip addr 192.168.2.1 255.255.255.0
R3(config-if)#no sh
R3(config-if)#int loopback 0
R3(config-if)#ipv6 addr 2001:3::1/64
R3(config-if)#no sh
R3(config-if)#exit
  1. Sırasıyla tunnel oluştur.

R1:

R1(config)#int tunnel 1
R1(config-if)#ipv6 addr 2001:10::1/64
R1(config-if)#tunnel source e0/1
R1(config-if)#tunnel destination 192.168.1.2
R1(config-if)#tunnel mode ipv6ip
R1(config-if)#exit

R1(config)#int tunnel 3
R1(config-if)#ipv6 addr 2001:30::1/64
R1(config-if)#tunnel source e0/0
R1(config-if)#tunnel destination 192.168.3.1
R1(config-if)#tunnel mode ipv6ip
R1(config-if)#exit

R2:

R2(config)#int tunnel 1
R2(config-if)#ipv6 addr 2001:10::2/64
R2(config-if)#tunnel source e0/1
R2(config-if)#tunnel destination 192.168.1.1
R2(config-if)#tunnel mode ipv6ip
R2(config-if)#exit

R2(config)#int tunnel 2
R2(config-if)#ipv6 addr 2001:20::2/64
R2(config-if)#tunnel source e0/0
R2(config-if)#tunnel destination 192.168.2.1
R2(config-if)#tunnel mode ipv6ip
R2(config-if)#exit

R3:

R3(config)#int tunnel 3
R3(config-if)#ipv6 addr 2001:30::2/64
R3(config-if)#tunnel source e0/0
R3(config-if)#tunnel destination 192.168.3.2
R3(config-if)#tunnel mode ipv6ip
R3(config-if)#exit

R3(config)#int tunnel 2
R3(config-if)#ipv6 addr 2001:20::1/64
R3(config-if)#tunnel source e0/1
R3(config-if)#tunnel destination 192.168.2.2
R3(config-if)#tunnel mode ipv6ip
R3(config-if)#exit
  1. Statik route yazarak networkleri haberleştir.

R1:

R1(config)#ipv6 route 2001:2::0/64 2001:10::2
R1(config)#ipv6 route 2001:3::/64 2001:30::2

R2:

R2(config)#ipv6 route 2001:1::/64 2001:10::1
R2(config)#ipv6 route 2001:3::/64 2001:20::1

R3:

R3(config)#ipv6 route 2001:1::/64 2001:30::1
R3(config)#ipv6 route 2001:2::/64 2001:20::2
  1. Test:

R1:

R1(config)#do ping 2001:2::1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 2001:2::1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/2 ms


R1(config)#do ping 2001:3::1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 2001:3::1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/1 ms

R2:

R2(config)#do ping 2001:1::1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 2001:1::1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/2 ms


R2(config)#do ping 2001:3::1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 2001:3::1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/2/4 ms

R3:

R3(config)#do ping 2001:1::1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 2001:1::1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/2 ms


R3(config)#do ping 2001:2::1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 2001:2::1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/2 ms

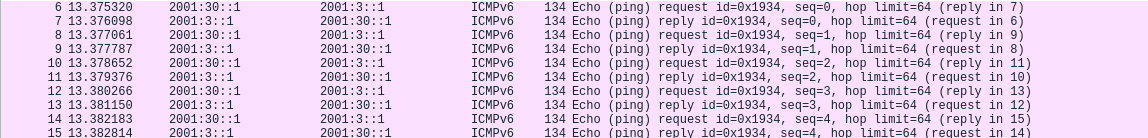

Son olarak ping attıktan sonra Wireshark çıktısına bakalım.

R1’den R3’e giderken;

ipv6

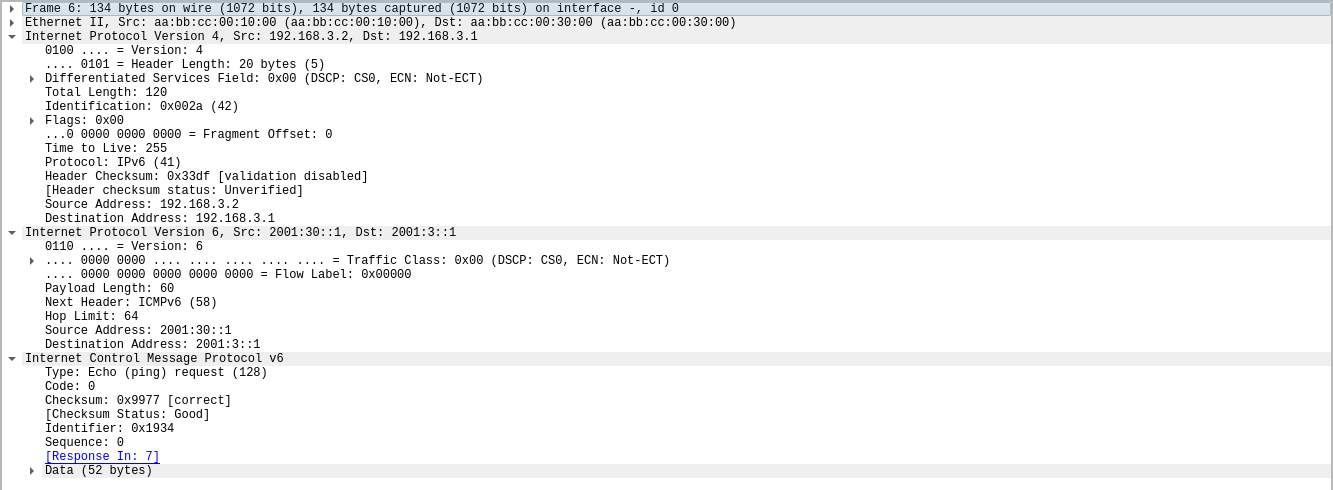

Request:

ipv6

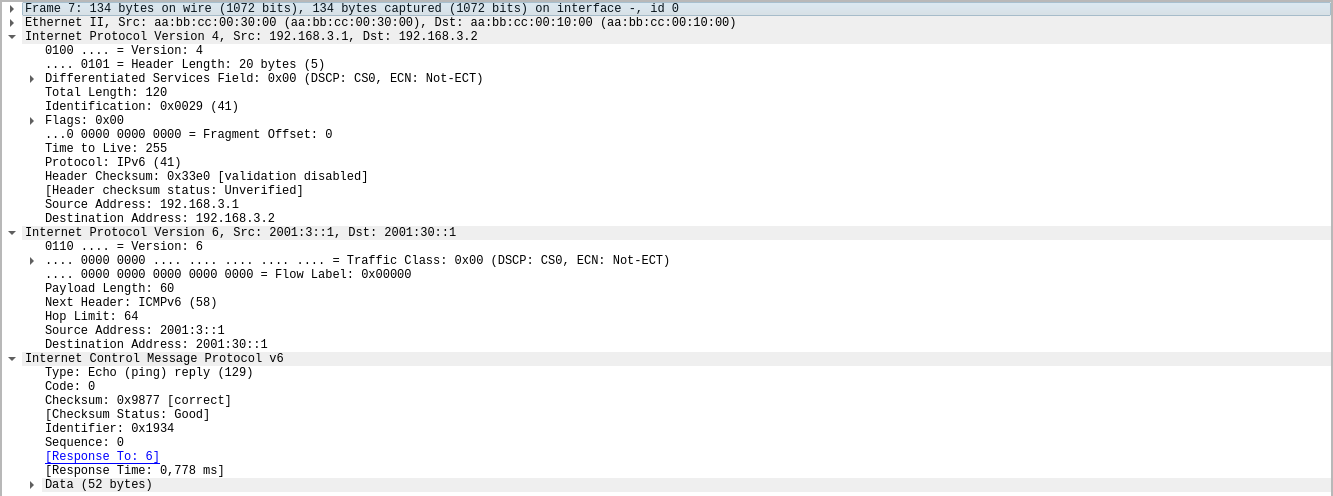

Reply:

ipv6

Teşekkürler,

İyi Çalışmalar.
